The Dimensions and Coordinates tab is designed to provide the precise position of a Warehouse Location, including the particular Aisle, Row, and Tier (as described in Warehouse Location). Detailing the Warehouse Location is also possible by providing the X, Y, and Z coordinates along with their unit of measure codes. This setting enables the Warehouse operator to check how much inventory can fit in a given location. Additionally, the Dimension and Coordinates tab enables linking a map with location details. For details, see the Dimension and Coordinates section below. The Warehouse Location Dimensions link allows you to create or select the defined dimensions for the Warehouse Location.

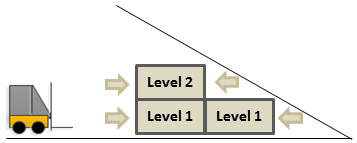

Since a Warehouse Location can be multilevel, wherein the upper level
may be of a different size than the lower one due to some physical restraints,
two sets of coordinates are provided to enable establishing the exact
location. Each coordinate can be assigned a separate UOM code as required
by the given Warehouse Location, e.g., the X coordinate can be provided
in meters while the Y coordinate in racks.

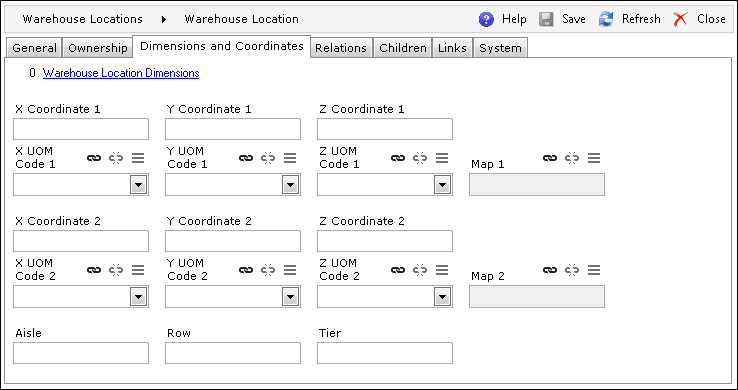

| Field | Description |
| X Coordinate 1 | The first X coordinate. |
| Y Coordinate 1 | The first Y coordinate. |
| Z Coordinate 1 | The first Z coordinate. |
| X UOM Code 1 | The unit of measure of the first X coordinate. |
| Y UOM Code 1 | The unit of measure of the first Y coordinate. |
| Z UOM Code 1 | The unit of measure of the first Z coordinate. |
| Map 1 | This option allows you to link a map with a more precise Warehouse Location. For details, see the Map section below. |
| X Coordinate 2 | The second X coordinate. |
| Y Coordinate 2 | The second Y coordinate. |
| Z Coordinate 2 | The second Z coordinate. |
| X UOM Code 2 | The unit of measure of the second X coordinate. |
| Y UOM Code 2 | The unit of measure of the second Y coordinate. |
| Z UOM Code 2 | The unit of measure of the second Z coordinate. |
| Map 2 | This option allows you to link a map with a more precise Warehouse Location. For details, see the Map section below. |
| Aisle | The aisle where the Warehouse Location is located. |
| Row | The row where the Warehouse Location is located. |
| Tier | The tier where the Warehouse Location is located. |
Click
(Link) to open the Maps browser, where you
can add new maps, remove existing ones, check properties, or select a

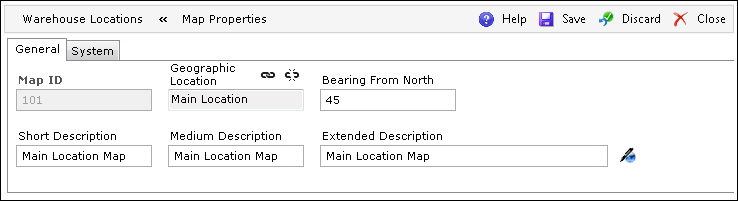

map to be linked with a given Warehouse Location. The Map Properties screen
enables defining the fields below.
| Field | Description |
| Map ID | The unique ID of the Map. Once created, it cannot be changed. |
| Geographic Location | This option allows you to link a Geographic Location. See the section below for more details. |
| Bearing From North | The directions from the north. |
| Short/Medium/Extended Description | A localizable description of the map. |
Click (Link) to open the Geographic Location Browser
where you can add new locations, remove existing ones, check properties,
or select a location to be linked with a given Map. The Geographic Location

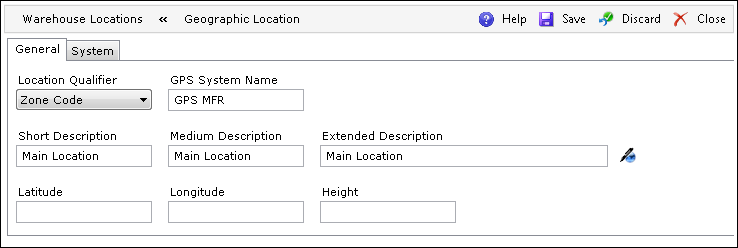

editor screen enables defining the fields below.
| Field | Description |
| Location Qualifier | The type of location that is being defined (e.g., block, district, factory). |
| GPS System Name | The name of the GPS system used to establish the location. |
| Short/Medium/Extended Description | A localizable description of the geographic location. |
| Latitude/Longitude/Height | The coordinates of the location. |
Click the link to open the Warehouse Location Dimensions browser, where you can add new dimensions, remove existing ones, check properties, or select dimensions to be linked with a given Warehouse Location. The Warehouse Location Dimension editor screen enables defining the fields below.
| Field | Description |
| Warehouse Location | The Warehouse Location that the edited/created dimensions are linked with. |
| Dimension | The dimension type (e.g., Actual Net Weight, Basis Weight, Calculated Weight, etc.). Once the Warehouse Location dimension is created, its type cannot be changed. |
| Min/Average/Max Value | The minimum, average, and maximum dimension values established for the given Warehouse Location. |
| UOM | The unit of measure for the chosen dimension type. |
