Specification Point

Characteristics visible at the Specification Point level are of the CustomAttribute usage and Attribute or Variable type, and they are defined in the Process associated with the SOP.

At the Specification Point level:

The user cannot unlink existing Characteristics
The user cannot link new Characteristics
The user can edit the Characteristic limits, target values, and UOM for Characteristics of the Variable type
The user can edit the Attributes, Attribute description, and conforming flag for Characteristics of the Attribute type
The user can add and remove the Attributes to Characteristics of the Attribute type (both those added manually and those defined in the Process)

Characteristics of the Variable Type

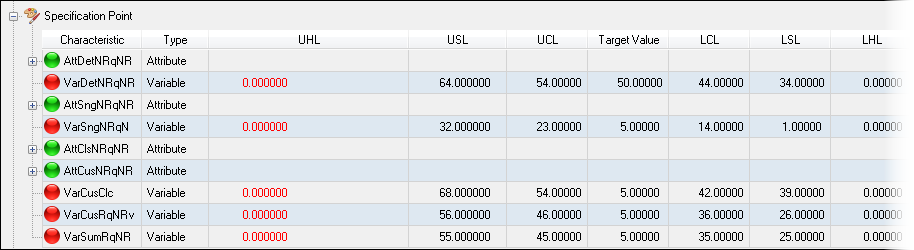

Color codes for the font of Characteristics of the Variable type help the user make sure he or she stays within the limits defined in the Process. The color codes are applicable to the following fields: Upper Coherence Limits (UHL), Lower Coherence Limits (LHL), Upper Specification Limits (USL), Lower Specification Limits (LSL), Upper Control Limits (UCL), and Lower Control Limits (LCL).

Color	Description
Black	The value was not changed (Process value = SOP Value).
Green	The value was changed and is consistent with Process values.
Red	The value is not consistent with Process values.

Columns for Characteristics of the Variable type are by default populated with values copied from the Characteristic properties, but some fields can be modified.

Column	Description
Characteristic	The unique ID of the Characteristic.
Type	The type of the Characteristic: Attribute, Variable.
UHL	The Upper Coherence Limit: the most extreme (tolerant) limit that can be used to indicate a result as being extremely incorrect, not recordable, or requiring additional manual action to continue the measurement. To modify the value, click the field and provide the new limits.
USL	The Upper Specification Limit: the range threshold defining the highest possible value the Attribute being measured can have to fulfill the specification demands. This value is used to calculate the final test conformity. To modify the value, click the field and provide the new limits.
UCL	The Upper Control Limit: the range threshold defining the highest possible value the Attribute being measured can have to fulfill the demands of the current control. This value is meant to narrow the Upper Specification Limit and has only informative meaning. To modify the value, click the field and provide the new limits.
Target Value	The most satisfactory (expected) value of the Characteristic. To modify the value, click the field and provide new limits.
LCL	The Lower Control Limit: the range threshold defining the lowest possible value the Attribute being measured can have to fulfill the demands of the current control. This value is meant to narrow the Lower Specification Limit and has only informative meaning. To modify the value, click the field and provide the new limits.
LSL	The Lower Specification Limit: the range threshold defining the lowest possible value the Attribute being measured can have to fulfill the specification demands. This value is used to calculate the final test conformity. To modify the value, click the field and provide the new limits.
LHL	The Lower Coherence Limit: the most extreme (tolerant) limit that can be used to indicate a result as being extremely incorrect, not recordable, or requiring additional manual action to continue the measurement. To modify the value, click the field and provide the new limits.
UOM	The unit of measure for the selected Characteristic. To modify the UOM, click the drop-down menu on the grid.
Ref UHL	The Upper Coherence Limit value defined in the original Process.
Ref USL	The Upper Specification Limit value defined in the original Process.
Ref UCL	The Upper Control Limit value defined in the original Process.
Ref Target Value	The target value defined in the original Process.
Ref LCL	The Lower Control Limit value defined in the original Process.
Ref LSL	The Lower Specification Limit value defined in the original Process.
Ref LHL	The Lower Coherence Limit value defined in the original Process.
Ref UOM	The UOM of the limits defined in the original Process.

Characteristics of the Attribute Type

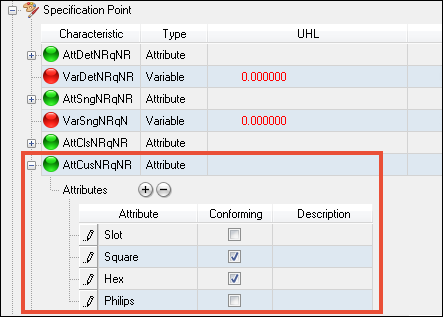

Two grids exist for Characteristics of the Attribute type. The columns of the first grid are the same as in the case of Characteristics of the Variable type. However, the values of the limits are always displayed as null and cannot be edited, as these values do not apply to Characteristics of the Attribute type. To see and edit the details of Characteristics of the Attribute type, click

to expand the grid. To collapse it, click

Column	Description
Attribute	The name of the Attribute (e.g., the color) that identifies the feature of the sample being tested. To modify the name, click the field and provide a new name.
Conforming	A flag indicating if the given Attribute conforms to the accepted Attributes. To modify, select or deselect the check box.
Description	A description of the Attribute. To modify the Description, click the field and provide a new one.

Actions

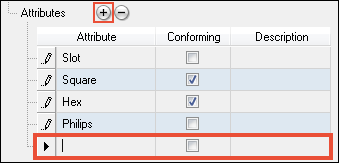

To add a new Attribute to an existing Characteristic of the Attribute type, expand the given Characteristic grid and click (Add) on top of the Attribute grid. A new row will be added where it is possible to define the Attribute name, Conforming flag, and Description.

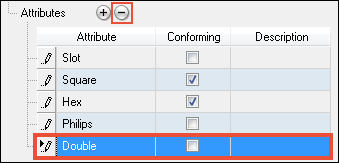

To remove an Attribute from a Characteristic of type Attribute, select the Attribute and click (Remove) on top of the Attribute grid.

To refresh the SOP, click (Refresh Recipe). For details, please refer to Refresh Recipe.
