Containments Browser

Description

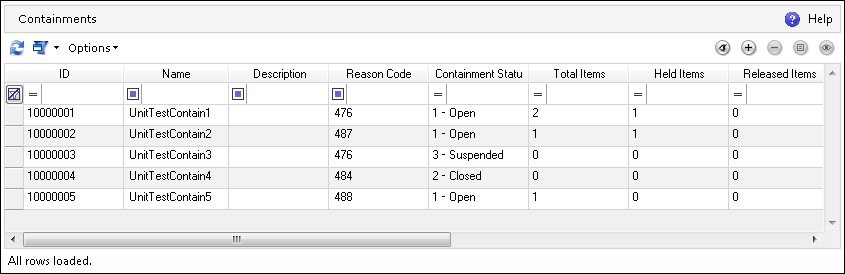

The Containments browser can be navigated to in the DELMIA Apriso Desktop Client. This screen lists all of the Containments created in the system.

Actions

The following actions can be performed on this screen:

Icon Action Description
View Opens the Containment Events Browser, where all of the events that happened in the plant for every Serial and Lot are displayed.
Add Opens a basic Containment Editor screen where a new Containment can be added to the system.
Remove Removes the selected Containment from the system.
Properties   Displays the Containment Editor, where changes to a Containment can be made (e.g., items can be held, released, added, etc.).
Session Opens the Session screen, where existing Sessions can be viewed. The Standard Operation responsible for this action is ClosedAPR_CNT_SESSION_BROWSE.

For more information on the Standard Operations responsible for certain processes in the Containment solution, refer to the Containment Implementation Guide.
